EcoCore XCD
EcoCore XCD
Ultra-Capacity Cooling Distribution Unit

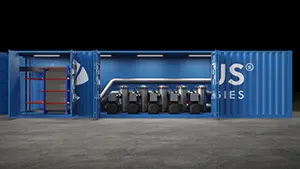

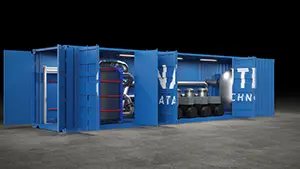

The EcoCore XCD is Nautilus’s highest-capacity Cooling Distribution Unit, engineered to support the world’s most demanding AI and HPC environments. Delivering up to 10MW of heat rejection per containerized module, the XCD provides unmatched flow, pressure, and reliability at the facility scale. Prefabricated and transportable, it integrates seamlessly into greenfield, brownfield, or retrofit projects, scaling your cooling infrastructure.
Benefits
Ultra-Capacity
10MW cooling capacity per module - engineered for the demands of AI at scale.
Field Proven
Mission-critical performance backed by Nautilusโ liquid cooling expertise and N+1 reliability.
Accelerate ROI
Modular fabrication for reduced complexity. Faster Install. Quicker ROI.
Future-Ready
Designed for scalability with vendor neutral compatibility โ Built for long-term flexibility.
Download the Full Product Data Sheet
Features
- Ultra Capacity Liquid Cooling
- Prefabricated Perimeter Deployable Containerized Module
- Stack-Configurable Expansion
- Built-in redundancy: Pumps, Filtration, Power, & Controller
- Engineered with top-tier components from world leading manufacturers
- Backed by over 35 years of QA expertise from our regional fabrication partners
- Customizable performance parameters, setpoints, and alarming
- Automated FWS and TCS flow control for real-time thermal load balancing
- BMS ready: Modbus, OPC UA, & SNMP Protocols
- Up to 10MW of ultra-capacity cooling per container

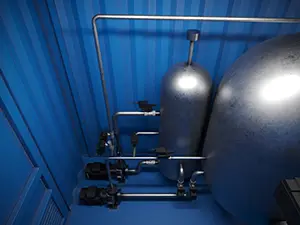

- Integrated degasser and filtration maintain optimal cooling efficiency
- AI-ready flow and pressure
EcoCore XCD Technical Specifications
| Category | XCD Specifications |
|---|---|
| Cooling Capacity per Module | 4000 kW to 10000 kW |
| Approach [ATD] | 1.5ยฐC [2.7ยฐF] |
| Maximum TCS Flow | 253 L/S [4010 GPM] |
| TCS Pressure Head at Maximum Flow | 5.1 Bar [74 PSI] ( 10 bar [145 psi ] total available head) |
| Dimensions | 12.1 m ร 2.44 m ร 2.9 m [39.7 ft ร 8.0 ft ร 9.5 ft] |
| Power | 400V - 480V 50-60Hz 3-phase dual feeds |
| Maximum Power Consumption | 200 kW |
| Primary Coolant Type (FWS) | Process Water Water-Glycol Mix [1-25%] |
| Secondary Coolant Type (TCS) | Process Water Water-Glycol Mix [1-25%] |
| Primary Connection | 300 mm [12 in.] Sanitary, SS316 |
| Secondary Connection | 300 mm [12 in.] Sanitary, SS316 |
| TCS Filtration | 25ฮผm Full Stream 1ฮผm Side-Stream |
| FWS Filtration (Optional) | 500ยตm Full-Stream |
| Redundancy | N+1 Pump and Filter |
| Integrated Degasser | Yes |
| Communication | Modbus, OPC UA, SNMP, Redfish |
View Our Other Solutions
FAQs
What is the cooling capacity of the EcoCore XCD?
The EcoCore XCD delivers up to 10 megawatts of heat rejection per module. This high-capacity design makes it an ideal liquid cooling solution for data centers running artificial intelligence workloads, high-performance computing (HPC), and other energy-intensive operations.
How does the EcoCore XCD ensure reliability and redundancy?
The EcoCore XCD is engineered for mission-critical performance. It includes N+1 redundancy across pumps, filters, and controllers, along with an integrated degasser and advanced filtration system. These features protect against downtime and maintain stable operation even in demanding data center environments.
Can the EcoCore XCD be integrated into existing data centers?
Yes. The EcoCore XCD is modular and prefabricated, designed for deployment in new facilities as well as brownfield and retrofit projects. Its containerized configuration reduces installation complexity and accelerates implementation, making it easier to upgrade existing cooling infrastructure.
What are the flow, pressure, and connection specifications of the EcoCore XCD?
The EcoCore XCD supports a maximum thermal coolant system (TCS) flow rate of approximately 253 liters per second (about 4,010 GPM). It operates with a pressure head of 5.1 bar at maximum flow and provides a total available head of up to 10 bar. Primary and secondary piping connections are 300 millimeters (12 inches) SS316 sanitary fittings, and the system achieves an approach temperature difference of 1.5 ยฐC (2.7 ยฐF).
How does the EcoCore XCD integrate with monitoring and control systems?
The EcoCore XCD is designed for seamless integration into modern building and data center management platforms. It supports industry-standard protocols including Modbus, OPC UA, SNMP, and Redfish. Operators can configure performance setpoints, monitor alarms, and use automated flow control to balance thermal loads in real time.
